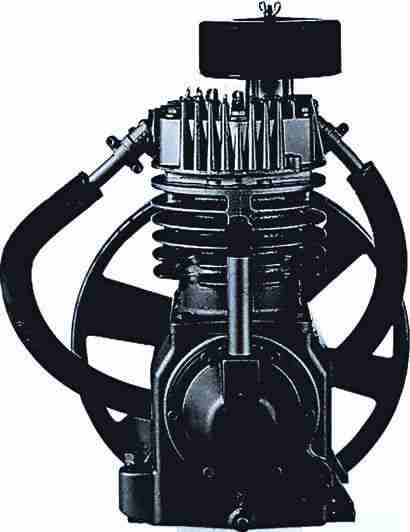

CAMPBELL HAUSFELD 5HP 2-STAGE COMPRESSOR PUMP

Description

5 HP
TWO STAGE
AIR COMPRESSOR PUMP

PART: TF2101

2 Cylinder, Cast Iron, splash lube compressor pump. Rates as the quietest operator compared to competitive oil-lubricated aluminum pumps. 1-stage. Up to 10.3 SCFM.

Features

· Rated for heavy-duty commercial use in new or replacement applications
· Stainless steel valves for long life
· 175 Maximum psi
· Oil level sight glass for easy checking
· Designed for 80/20 duty cycle
· Low pump RPM
· 16.6 free air CFM at maximum pressure
· 700 pump RPM
· Two quart oil capacity
· Flywheels have two grooves for B-section belts
Use as replacement pump with the following Speedaire compressor models:

Use as replacement pump with the following Campbell Hausfeld compressor models:

CE705, CE7052, CE7053, CE7050FP, CE7051FP, CE7052FP, CE7053FP

TF2101, TF2111, TQ3010, TQ3011, TX2101, TX2118
